Change data capture (CDC) converts committed database changes into a resumable stream. Log-based CDC observes the same transaction log used for recovery, so the application does not need a second write for every downstream sink. It still produces an asynchronous, replayable copy—not a distributed transaction with the consumer.
Transaction Log to Consumer
For one committed transaction, emit a stable source position, transaction ID, table, key, operation, before/after data where available, and schema version. Preserve commit order within the documented source partition. A connector stores its last acknowledged log position only after the broker accepts the record.

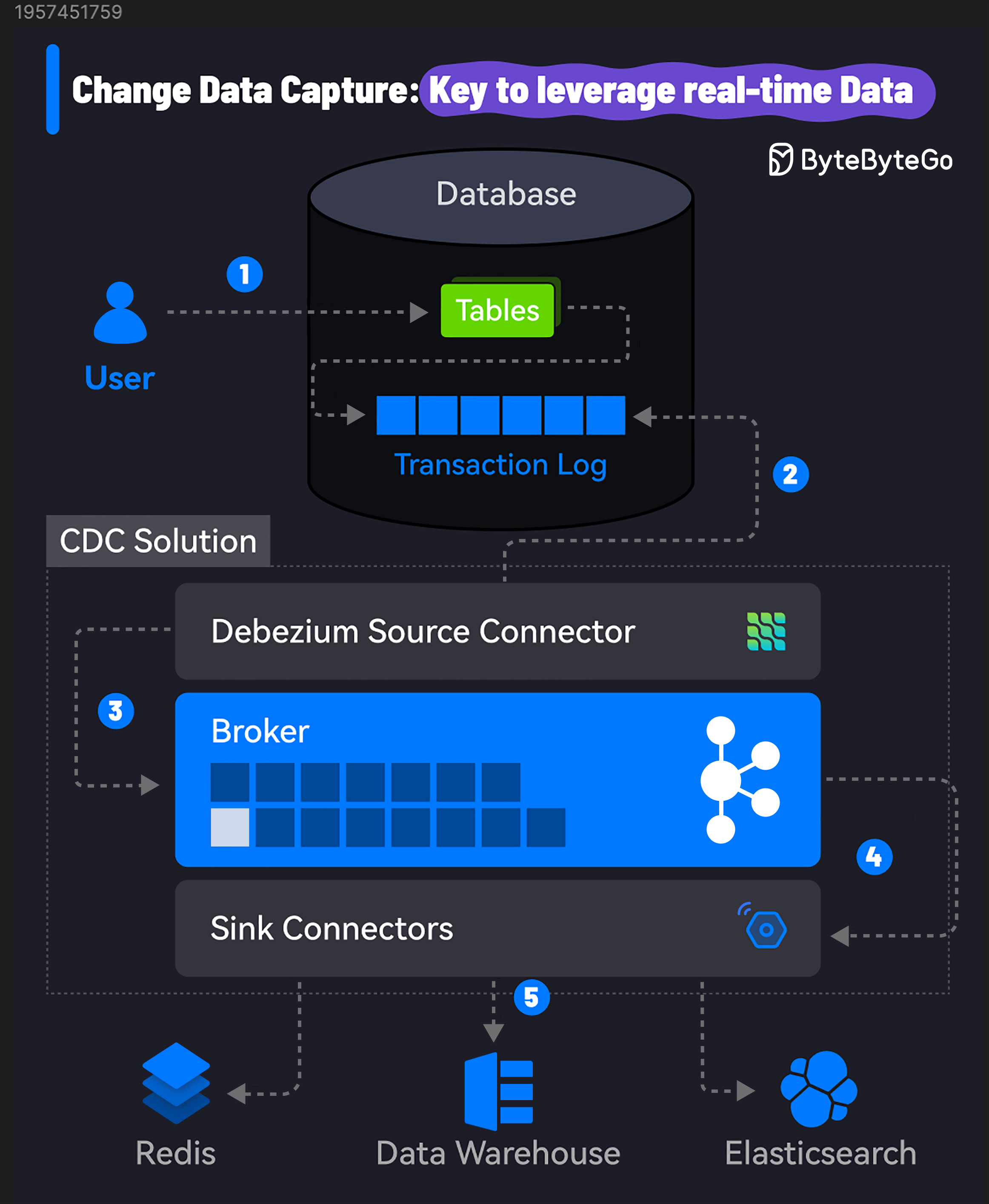

The visual shows a common Debezium-to-broker-to-sink path. The database log is the source boundary; snapshot bootstrapping, schema changes, deletes, retention, and duplicate delivery need separate rules.
Suppose orders/42 changes from PENDING to PAID at log sequence 8/2A10. A sink records that source position with its projection update. If the connector replays the event after a crash, the sink compares the position or event ID and becomes a no-op.
Snapshot, Retention, and Schema
An initial snapshot and the live log must meet at a precise position; otherwise changes committed during the snapshot can be lost or duplicated. Retain the source log and broker records long enough for the slowest recoverable consumer. A connector that falls behind the database retention window needs a new snapshot.
Represent deletion explicitly with a tombstone or delete operation. Carry schema identity with every event, make additive changes backward compatible where possible, and stop or quarantine a consumer that cannot interpret the new schema rather than silently dropping fields.
CDC Is Not the Outbox
CDC faithfully reports database changes. It cannot infer that three unrelated row updates mean one domain event. Use a transactional outbox when the application must atomically store business state and a deliberate integration event. CDC can then publish the outbox row without a dual write.
References
- Debezium documentation — official snapshot, offset, schema-change, transaction, deletion, and connector behavior.
- PostgreSQL logical decoding — official extraction of persistent database changes from the write-ahead log.
- Kafka Connect documentation — official connector offset, task, converter, delivery, and error-handling model.
- ByteByteGo: change data capture — provenance for the transaction-log, source-connector, broker, and sink topology.
