Consistent hashing maps both nodes and keys into the same circular hash space. A key belongs to the first node clockwise from its position. When membership changes, only the adjacent ranges move instead of recomputing every key with hash(key) % node_count.
Exact Remapping Example
Use a ring from 0 to 99 with nodes A=20, B=50, and C=80:
| Key position | Owner before join |
|---|---|
| 10 | A |
| 30 | B |
| 60 | C |
| 90 | A after wrap-around |
Add node D=40. Only keys in (20, 40] move from B to D, so key 30 moves while 10, 60, and 90 stay put. If N equally loaded nodes exist before the join, the new node receives an expected 1 / (N + 1) of all keys. Removing one node from a ring of N equally loaded nodes moves its expected 1 / N share to its clockwise successor or replica owners. Small samples, uneven token placement, and weighted nodes change the observed fraction.

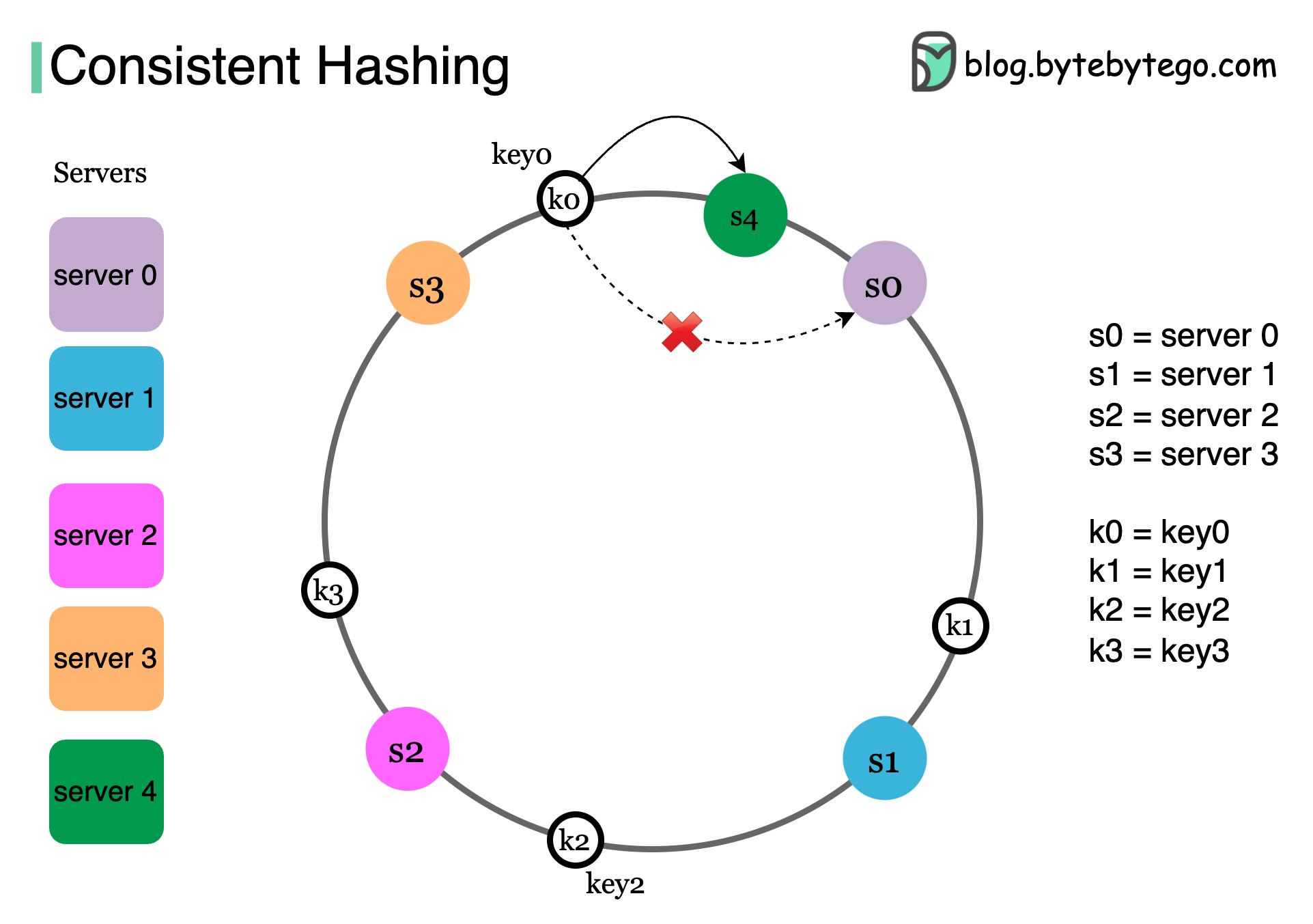

The visual illustrates clockwise ownership and a new node taking one range. It does not define replication, failure detection, or how concurrent membership views converge.
Virtual Nodes and Capacity
Assign many independently hashed tokens to each physical node. This spreads a node across the ring, reduces variance, and lets a larger node own more tokens. Token count is an operational choice: more tokens improve balance but enlarge routing metadata and recovery fan-out.
Consistent hashing does not split a hot key, guarantee uniform application traffic, or protect data. Replicate each range under an explicit policy, version the membership map, and move ranges with a handoff protocol that prevents reads from falling between old and new owners.
Use rendezvous hashing when selecting the highest-scoring nodes for a key is simpler than maintaining a ring. Both approaches need the same membership and replication discipline.
References
- Consistent hashing and random trees — original paper defining consistent hashing and bounded remapping under membership changes.
- Dynamo: Amazon’s highly available key-value store — primary design using consistent hashing, virtual nodes, replication, and preference lists.
- ByteByteGo: consistent hashing — provenance for the ring and clockwise key-placement visual.
