Redis

Redis keeps a working data set in memory and exposes atomic commands over typed values such as strings, hashes, sets, sorted sets, streams, and bitmaps. That makes a GET, counter increment, or leaderboard update cheap, but memory speed is not a durability or consistency guarantee. Before choosing Redis, name which system is authoritative, what an acknowledged write means, what may be lost during failover, and how the application behaves when the cluster is unavailable.

A product catalog can treat Redis as a disposable cache because a miss reloads PostgreSQL. A checkout idempotency key is different: losing it can repeat a payment. The second workload needs a deliberate persistence, replication, expiry, and recovery contract even if both use the same SET command.

Data Structures and Workload Contracts

Workload	Redis structure or command	Contract to make explicit
Cache or session	String or hash with EX/PX expiry	Authority, maximum staleness, logout/revocation behavior, and miss handling
Counter or rate limit	INCR, expiry, or a Lua/function operation	Window semantics, atomicity boundary, and fail-open versus fail-closed behavior
Leaderboard	Sorted set (ZADD, ZRANGE)	Score update ordering, tie handling, and rebuild path
Membership or retention	Set, HyperLogLog, or bitmap	Exact versus approximate count and retention horizon
Work queue or event stream	Stream (XADD, consumer groups)	Retention, acknowledgement, replay, duplicate handling, and dead-letter policy
Coordination lease	SET key token NX PX ... plus token-checked release	Lease expiry, clock/partition behavior, fencing, and what stale owners must not modify

SET session:7f2 '{"userId":"u42","tenantId":"t9"}' EX 1800
INCR rate:tenant:t9:minute:2026-07-16T12:04
EXPIRE rate:tenant:t9:minute:2026-07-16T12:04 120
ZADD leaderboard:weekly 9280 user:u42
XADD orders * orderId o-1842 status accepted

These commands are atomic individually. They do not create a relational transaction across an external database, and a successful response says nothing about disk or replica acknowledgement unless the deployment contract adds those guarantees.

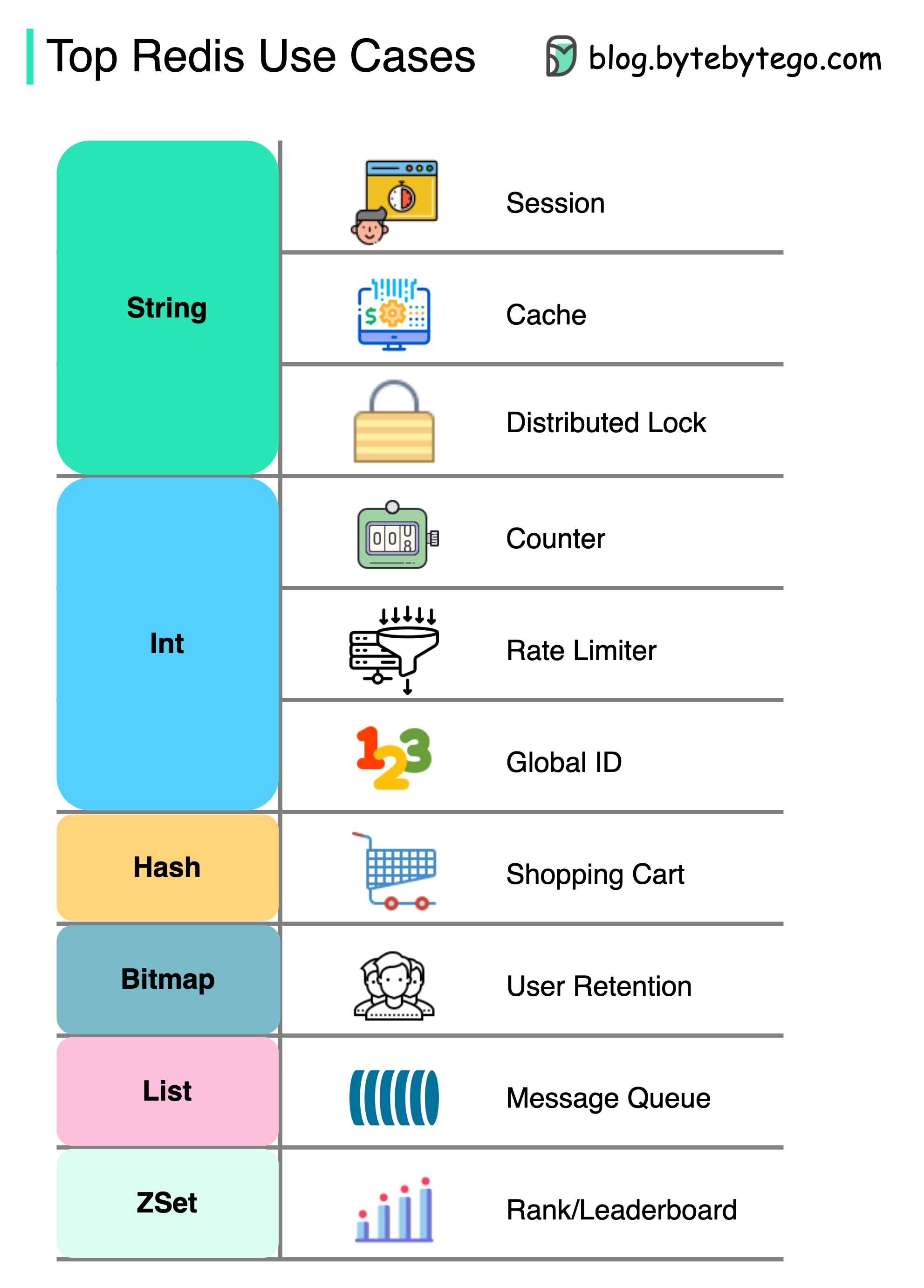

Use-case inventory, not a safety contract

The visual maps structures to possible workloads, but a string does not by itself make a safe distributed lock or global ID service, and a list is not a durable queue contract. Use fencing for coordination, define durability and replay for messaging, and test every workload against failover and eviction.

Persistence

Redis supports four broad modes:

Mode	What is stored	Typical loss window	Operational cost
None	Memory only	Entire data set after process/node loss	Fastest recovery is an origin rebuild; appropriate only for disposable data
RDB	Point-in-time snapshots	Writes since the last completed snapshot	Compact files and fast restart, but fork() and copy-on-write can pause or inflate memory use
AOF	Write commands replayed at restart	Depends on appendfsync: always, everysec, or OS-managed no	More disk traffic and longer replay; rewrites compact obsolete history
RDB + AOF	Snapshot-style AOF base plus incremental commands in current Redis	Usually governed by the AOF policy	Better restart shape, with both persistence and rewrite capacity costs

RDB is a backup-friendly snapshot, not a continuous log. AOF is appended after Redis applies a command in memory; appendfsync always waits for each flush, everysec commonly accepts roughly one second of crash loss, and no delegates flush timing to the operating system. Since Redis 7, multipart AOF uses one base file plus incremental files tracked by a manifest; a rewrite creates a new compact base while new writes continue into an incremental file.

Background does not mean free. BGSAVE and AOF rewrite fork a child. Fork latency grows with page-table size, and writes during the child process trigger copy-on-write pages. A large write or delete still consumes main-thread time, network bandwidth, allocator work, and AOF buffer capacity before any background fsync. Monitor latest_fork_usec, rdb_bgsave_in_progress, aof_rewrite_in_progress, copy-on-write bytes, disk latency, and memory headroom.

AOF persistence and big keys

A five-megabyte value makes several costs visible at once: the client sends and Redis parses a large command; the main thread mutates a large object; the AOF path copies a large command into buffers; replication sends it again; and a rewrite or snapshot may copy additional memory pages. appendfsync everysec moves the durability flush off the request path, but it does not remove those costs.

Prefer bounded values and incremental structures. Inspect MEMORY USAGE, --bigkeys, slow logs, command latency, network bytes, and persistence copy-on-write metrics. Delete large values asynchronously with UNLINK when delayed reclamation is acceptable, and load-test snapshot/rewrite overlap rather than testing only steady-state commands.

Persistence is local durability, replication is another copy, and backup is a recoverable historical artifact. None substitutes for the other. Keep tested off-host backups when Redis owns non-reconstructable state.

Topology and Availability

Replication streams commands from one primary to replicas asynchronously. A replica can be behind when the primary fails. WAIT asks for replica acknowledgements and reduces the loss window, but Redis documents that it does not turn asynchronous replication into a strongly consistent consensus system.

Sentinel monitors a non-clustered primary/replica deployment, reaches quorum for failover decisions, promotes a replica, and provides clients with the current primary address. Clients must support Sentinel discovery and reconnect. A network partition can still lose acknowledged writes when the old primary’s unreplicated history is discarded after failover.

Redis Cluster partitions keys across 16,384 hash slots. Each primary owns a slot range and may have replicas. Clients follow MOVED/ASK redirections during normal routing and resharding. Multi-key commands, transactions, and scripts require all participating keys to share one slot; hash tags such as cart:{u42} and inventory:{u42} deliberately colocate keys, which can also create a hot slot.

Need	Default choice	Cost to accept
Disposable cache on one node	Standalone Redis with expiry and origin protection	Cold starts and node loss become origin load
Automatic failover without sharding	Primary, replicas, and Sentinel	Eventual consistency, client discovery, and possible acknowledged-write loss
Memory/write scale beyond one primary	Redis Cluster	Slot-aware keys, resharding, cross-slot limits, and per-shard failover
No acknowledged-write loss	A consensus-backed durable system of record	Higher latency and a different operating model; Redis replication alone is insufficient

Pitfalls

• Mixing disposable and authoritative keys under one eviction policy. A pure cache can use allkeys-lfu; authoritative workflow state cannot tolerate eviction. Separate deployments or enforce non-evicting capacity controls.
• No expiry on unbounded key spaces. Sessions, idempotency keys, and versioned cache keys accumulate until maxmemory causes eviction or writes fail.
• Assuming replicas are backups. Replication copies accidental deletes and corruption. Backups preserve older states and need restore tests.
• Unsafe distributed locks. A client can pause past its lease and continue writing after another client acquires it. Use fencing tokens at the protected resource or choose a consensus system.
• Cross-slot surprises. A script that works on one node fails with CROSSSLOT after clustering unless its keys share a slot.

Questions

When is Redis safe as a system of record?

Only when the deployment’s eviction, persistence acknowledgement, replication/failover loss window, backup, restore, and capacity contracts meet the data’s requirements. Enabling AOF is not enough: asynchronous failover can still lose acknowledged writes, disk and rewrite failures still need handling, and maxmemory must not evict authoritative keys.

Why can a big key hurt Redis even with appendfsync everysec?

The main thread still receives, parses, mutates, and copies the large command into AOF and replication buffers. Background fsync removes one disk wait from the request path; it does not remove network, allocator, serialization, copy-on-write, rewrite, or deletion work.
