Deployment strategies control how new versions of software reach production. The right strategy balances risk tolerance, infrastructure cost, and rollback speed. A strategy is only as good as your monitoring — without metrics and alerts, you cannot detect a bad deploy fast enough to stop it.

The strategies differ across several axes: whether old and new artifacts coexist, whether traffic moves separately from deployment, how much spare capacity is required, how quickly rollback changes exposure, and whether progression is time-driven or evidence-driven. Treating them as one blast-radius scale hides those operational differences.

Deployment, Traffic, Experiment, and Feature Boundaries

These controls solve different problems and should be composed deliberately:

Every rollout needs a recoverable previous artifact, compatible data/recovery steps, and a health threshold with an observation window. Strategies that run old and new versions together also need backward-compatible interfaces and enough spare capacity for that overlap. Recreate can avoid overlap capacity by accepting downtime. Clean up old ReplicaSets, environments, experiment assignments, and flags after the decision; otherwise the safety mechanisms become permanent operational state.

All-at-Once (Big Bang)

Replace every instance simultaneously. The old version stops; the new version starts.

Mechanism: Stop all instances → deploy new artifact → start all instances. In Kubernetes, set the Deployment strategy to Recreate; the controller terminates the old Pods before it creates Pods for the new revision.

strategy:
  type: Recreate

Scenario: A startup with a single EC2 instance and a 2 AM maintenance window. Downtime is acceptable; infrastructure cost is the constraint.

Risks:

• Full downtime during the swap
• If the new version is broken, 100% of users are affected immediately
• Rollback requires another full deploy cycle

When to use: Internal tools, dev/staging environments, or services where brief downtime is contractually acceptable and infrastructure cost matters more than availability.

In-Place (Rolling)

Replace instances one at a time (or in small batches), keeping the rest serving traffic.

Mechanism: Take one instance out of the load balancer → deploy new version → wait for readiness → put it back in → repeat. For a Kubernetes Deployment with ten desired replicas, maxUnavailable: 1 permits at least nine available Pods during the rollout and maxSurge: 1 permits up to eleven total Pods. It does not mean exactly nine serve at every instant; readiness failures, terminating Pods, disruption, and controller timing change the observed count.

strategy:
  type: RollingUpdate
  rollingUpdate:
    maxUnavailable: 1
    maxSurge: 1

Scenario: A SaaS app with ten Pods uses the policy above. The controller can create one extra Pod and must keep at least nine available according to Kubernetes readiness. Avoiding user-visible downtime still depends on a correct readiness probe, graceful termination, compatible old/new versions, and enough capacity in those available Pods.

Risks:

• During rollout, old and new versions run simultaneously — your API must be backward-compatible (no breaking schema changes)
• Rollback requires another rolling update in reverse (slow)
• If a bug only manifests under load, it may not surface until most pods are updated

When to use: Default strategy for most web services. Works well when you can guarantee API backward compatibility between adjacent versions.

Blue-Green

Maintain two identical environments (blue = current, green = new). Switch traffic atomically by updating the load balancer.

Mechanism: Blue serves 100% of traffic. Deploy new version to green. Run smoke tests on green. Flip the load balancer to green. Blue becomes the standby.

# AWS ALB target group swap
aws elbv2 modify-listener \
  --listener-arn $LISTENER_ARN \
  --default-actions Type=forward,TargetGroupArn=$GREEN_TG_ARN

Scenario: A fintech app processing payments. Zero-downtime is non-negotiable. Blue-green lets you validate green with synthetic transactions before switching. If green fails, flip back to blue in seconds.

Risks:

• Double infrastructure cost during the transition (two full environments)
• Database migrations must be backward-compatible with both versions simultaneously
• Session state tied to blue instances is lost on cutover (use external session stores)

When to use: High-availability services where rollback speed matters more than infrastructure cost. Ideal when you have stateless services and an external session/state store.

Canary

Route a small percentage of real traffic to the new version, monitor, then gradually increase.

Mechanism: Deploy new version alongside old. Route 5% of traffic to new (by weight in the load balancer or service mesh). Monitor error rates, latency, and business metrics. If healthy, increase to 20% → 50% → 100%. If unhealthy, route 0% back to old.

# Kubernetes with Argo Rollouts
strategy:
  canary:
    steps:
    - setWeight: 5
    - pause: {duration: 10m}
    - setWeight: 20
    - pause: {duration: 10m}
    - setWeight: 100

Scenario: An e-commerce platform handles 500,000 checkout attempts per day. If attempts were uniform, ten minutes would contain about 3,472 attempts and a 5% canary about 174—not 25,000. Size the observation window from actual traffic and the minimum sample needed to detect the regression; a tiny canary can be statistically inconclusive.

Risks:

• Requires sophisticated traffic splitting (service mesh, weighted load balancer, or feature flags)
• Monitoring must be granular enough to detect issues at 5% traffic
• Longer rollout window means old and new versions coexist for hours

When to use: High-traffic services where you want real-user validation before full rollout. Pairs well with feature flags and automated rollback on SLO breach.

Netflix Canary Case Study

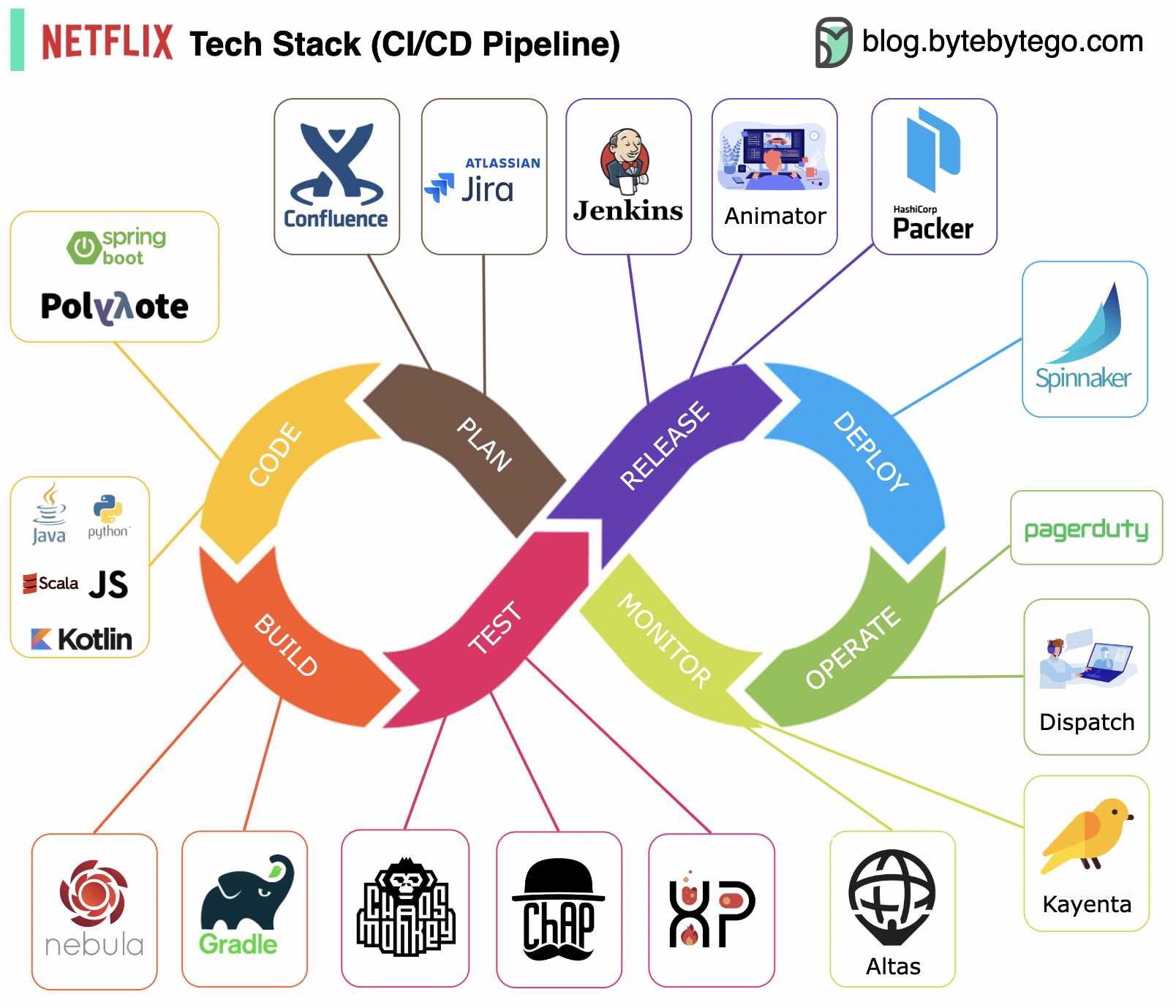

Netflix combined failure-seeking operational practice with automated progressive delivery. Spinnaker controlled the rollout, Atlas provided time-series measurements, and Kayenta scored the canary against a baseline before traffic advanced. The useful mechanism is the closed loop: an explicit cohort, comparable telemetry, a pass/fail rule, and an automatic traffic reversal. The tool names are historical evidence, not a recommendation to reproduce Netflix’s stack.

Shadow Traffic and A/B Experiments

Kubernetes Deployments directly implement Recreate and RollingUpdate; they do not by themselves provide blue-green, canary analysis, shadowing, or experiment assignment. Those need traffic infrastructure such as a gateway, service mesh, progressive-delivery controller, or application feature system.

Shadow requests must not create production side effects: suppress writes, payments, messages, and emails, or route them to isolated dependencies. A/B assignment must be sticky and measured long enough for statistical power. Use shadowing to validate technical behavior, canary to protect reliability, and A/B only after the candidate is operationally safe.

Linear

Increase traffic to the new version in fixed increments on a fixed schedule (e.g., +10% every 10 minutes).

Mechanism: Same as canary but automated and time-driven rather than metric-driven. AWS CodeDeploy’s Linear10PercentEvery10Minutes is the canonical implementation.

Scenario: A Lambda function update uses CodeDeploy’s Linear10PercentEvery10Minutes. The first 10% shift happens at deployment start, followed by nine ten-minute increments, so full traffic is reached after roughly 90 minutes plus deployment overhead. CloudWatch alarms can stop and roll back the deployment when configured thresholds breach.

Risks:

• Less adaptive than canary — traffic increases on schedule even if early signals are ambiguous
• Requires automated rollback hooks (CloudWatch alarms → CodeDeploy rollback)
• Not suitable for services where 10% traffic is too small to surface bugs

When to use: Serverless functions and AWS Lambda deployments where CodeDeploy integration is native. Good when you want predictable rollout timelines over adaptive ones.

Comparison

Decision Rule

flowchart TD
    A{Downtime acceptable and overlap capacity not justified} -->|Yes| B[Use all-at-once]
    A -->|No| C{Need a pre-provisioned environment and fast traffic reversal}
    C -->|Yes| D[Use blue-green]
    C -->|No| E{Can split traffic and evaluate a representative cohort}
    E -->|Yes| F{Progress from health evidence or a fixed schedule}
    F -->|Evidence| G[Use canary]
    F -->|Schedule| H[Use linear]
    E -->|No| I[Use rolling with readiness and compatibility gates]

References

• Martin Fowler — BlueGreenDeployment — canonical definition of blue-green by the originator; explains the environment swap pattern and database migration considerations
• Martin Fowler — CanaryRelease — canonical canary definition; covers traffic splitting, monitoring requirements, and when canary is worth the complexity
• AWS — Deployment Methods — AWS whitepaper covering all major strategies with diagrams and AWS-specific implementation guidance
• Kubernetes — Rolling Updates — how Kubernetes implements rolling/in-place deploys natively with maxUnavailable and maxSurge
• Argo Rollouts — Kubernetes controller for advanced canary and blue-green deployments with automated analysis
• Kubernetes Deployment strategies — official boundary for rolling and recreate behavior.
• Netflix: Automated Canary Analysis with Kayenta — primary description of canary scoring against a baseline.
• ByteByteGo: common deployment strategies — source contribution for the deployment and release matrix; its visual was rejected by the audit.
• ByteByteGo: Kubernetes deployment strategies — source contribution for the Kubernetes boundary and shadow/A/B distinction; its visual was rejected by the audit.
• ByteByteGo: Netflix CI/CD pipeline — source contribution for the historical Netflix canary case study.

Questions

When would you choose canary over blue-green deployment?

• Blue-green gives instant rollback by switching traffic back to the old environment, but requires running two full environments simultaneously.
• Canary gradually shifts traffic to the new version, catching issues in production with real users before full rollout.
• Choose canary when you need production validation with real traffic patterns that staging cannot replicate.
• Choose blue-green when you need atomic cutover and can afford double infrastructure cost during the switch.
• Canary requires traffic splitting infrastructure (service mesh, load balancer rules, or a progressive delivery controller like Argo Rollouts).
• Canary shrinks blast radius but stretches the deployment window and leans on monitoring automation to catch regressions; blue-green is simpler but doubles infrastructure cost during the switch.

What failure mode makes rolling deployments unsafe for database schema changes?

• Rolling deployments run old and new code side by side during the rollout window.
• A destructive schema change (dropping a column, renaming a table, changing a constraint) breaks the old instances still serving traffic.
• Safe approach: expand-and-contract migrations — add the new column first, deploy code that writes to both, then remove the old column in a later release.
• If schema changes are not backward-compatible, rolling deployment causes partial failures, data corruption, or 500 errors from old instances.
• Expand-and-contract spreads one change across several deploys and adds migration bookkeeping, but it is the only safe path to zero-downtime schema evolution under rolling deploys.

How do you decide between A/B testing and canary when both are available?

• Canary validates operational health — does the new version crash, timeout, or degrade throughput.
• A/B testing validates user behavior — does the new version improve conversion, engagement, or other business metrics.
• Use canary first to confirm the release is safe, then A/B test to measure business impact.
• A/B testing requires statistically significant traffic volumes and longer observation windows than canary health checks.
• Canary can auto-rollback on error rate spikes in minutes; A/B tests typically run days or weeks.
• Running both gives the most confidence but demands traffic management, metric pipelines, and longer release cycles — justified for high-impact user-facing changes, overkill for an internal service.
