SMTP is the transfer protocol for sending outbound mail from clients and between servers. It is not mailbox retrieval (IMAP/POP3); those are separate protocols.

Flow and Boundaries

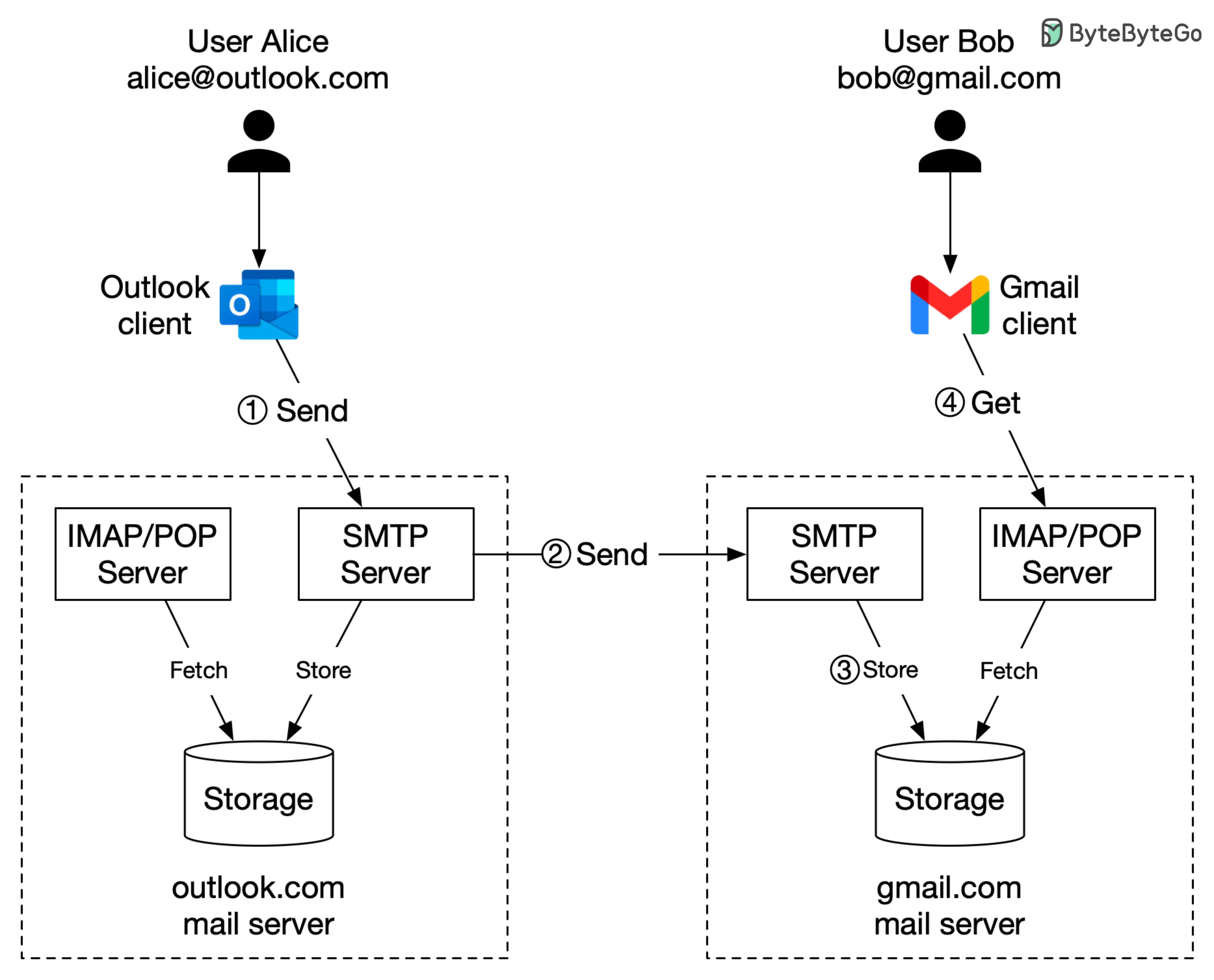

A common path is:

Alice client -> Alice SMTP submission server -> DNS MX lookup -> Bob SMTP server -> Bob mailbox

Submission is usually authenticated and policy-enforced. The server enqueues durably before or during remote transfer depending on internal architecture.

SMTP response classes:

  • 4xx: transient; retry semantics may apply
  • 5xx: typically non-retryable for that recipient
  • 250: accepted for submission policy, not guaranteed final delivery

Timeouts are ambiguous: a server can accept a message then drop the response, so duplicate detection must exist.

Email Authentication

Email has two sender identities. The SMTP envelope sender (MAIL FROM, later exposed as Return-Path) receives bounces; the message’s header From is what users see. SPF authenticates infrastructure for the envelope identity, DKIM authenticates signed message fields for a signing domain, and DMARC asks whether at least one passing identity aligns with the header From domain.

SMTP authentication is layered:

ControlVerifiesDoes not prove
SPFConnecting IP is authorized by the envelope domain’s policyMessage integrity or visible From alignment by itself
DKIMSigned headers/body hash validate under the selector/domain public keyThe signer is the visible From domain unless alignment holds
DMARCPassing SPF or DKIM aligns with the header From domainInbox placement, harmless content, or a trustworthy sender

Alignment compares organizational domains in relaxed mode and exact domains in strict mode. A third-party sender can pass its own SPF while failing DMARC for From: billing@example.com unless the envelope domain aligns or it signs with an aligned d=example.com DKIM identity.

MAIL FROM:<bounce@mailer.example.net>   SPF passes for example.net
From: Billing <billing@example.com>     visible domain is example.com
DKIM-Signature: d=example.com; s=mail   aligned DKIM passes
DMARC: pass through DKIM alignment

Roll authentication out as an observed migration:

  1. Inventory every legitimate sender and bounce domain.
  2. Publish the narrowest SPF policy that covers them; avoid exceeding the SPF DNS-lookup limit.
  3. Enable DKIM with managed key rotation and an aligned signing domain.
  4. Publish DMARC with reporting and p=none while validating coverage.
  5. Move toward quarantine or reject only after reports show legitimate streams align.
  6. Monitor forwarding and mailing-list behavior; DKIM can survive forwarding when signed fields remain intact, while SPF commonly evaluates the forwarder’s IP.

Receiver requirements are not universal. Providers publish different requirements for personal mail, bulk senders, and high-volume traffic, and those policies change. Treat the strictest important receiver as a deployment requirement and verify its current primary documentation. Authentication is necessary for many sending programs but still competes with reputation, complaint rate, content, list hygiene, and unsubscribe handling.

.NET Sending: Direct Protocol vs Provider APIs

System.Net.Mail.SmtpClient is usable but legacy; it is not Microsoft-recommended for new systems that need modern reliability.

using MailKit.Net.Smtp;
using MailKit.Security;
using MimeKit;

var message = new MimeMessage();
message.From.Add(MailboxAddress.Parse("billing@example.com"));
message.To.Add(MailboxAddress.Parse("customer@example.net"));
message.Subject = "Invoice ready";
message.Body = new TextPart("plain") { Text = "Invoice 1842 is ready." };

using var client = new SmtpClient();
await client.ConnectAsync("smtp.example.com", 587, SecureSocketOptions.StartTls, ct);
var oauth2 = new SaslMechanismOAuth2(userName, accessToken);
await client.AuthenticateAsync(oauth2, ct);
await client.SendAsync(message, ct);
await client.DisconnectAsync(true, ct);

Do not keep passwords in code or configuration files. Prefer short-lived tokens or a secret store, validate the server certificate, and set connect/send timeouts at the application boundary.

Submission and acceptance contract

An SMTP 250 after DATA means the receiving submission server accepted responsibility under its policy; it does not mean the recipient read the message or that another domain accepted it. HTTP 202 Accepted only means a provider accepted the request for processing. It proves durable queueing only when that provider’s documented contract says so, and it never proves final delivery.

Persist an outbox row in the same transaction as the business state that requires the email. A worker sends it, records the provider/message ID, and retries transient failures with a bounded schedule. Because a timeout can occur after acceptance, retries can duplicate messages; use a stable application notification ID and provider idempotency support where available.

Process delivery events as untrusted, duplicate-prone input. Verify webhook signatures, deduplicate event IDs, and update suppressions for hard bounces, complaints, and unsubscribes before the next send.

Compare approaches:

ApproachStrong fitCost
Direct SMTP with MailKitFull protocol control and internal infrastructureHigher operational burden
Managed provider APIDeliverability, suppression, bounces, complaints workflowsVendor dependency and data residency contract

Choose from delivery and compliance requirements rather than assuming one path for every production system.

Operational Notes

  • System.Net.Mail.SmtpClient can work for simple internal scenarios but misses modern transport-control expectations.
  • For high-volume sending, managed platforms often simplify deliverability and event-driven suppression.
