JWT Bearer

JWT (JSON Web Token) is a compact claims format that can be signed and/or encrypted. In JWT Bearer authentication, a client sends a bearer access token in the Authorization header and the API validates it under rules fixed for that token use. Local validation can avoid a per-request token-store lookup, but revocation, reference data, authorization, or key discovery may still require shared state.

JWT Structure

A compact signed JWT is three base64url-encoded segments separated by dots: header.payload.signature. This complete RFC example is safe to decode for study but long expired and must not be accepted as a live credential:

eyJ0eXAiOiJKV1QiLCJhbGciOiJIUzI1NiJ9.eyJpc3MiOiJqb2UiLCJleHAiOjEzMDA4MTkzODAsImh0dHA6Ly9leGFtcGxlLmNvbS9pc19yb290Ijp0cnVlfQ.dBjftJeZ4CVP-mB92K27uhbUJU1p1r_wW1gFWFOEjXk

Decoding the first two segments yields readable JSON:

{
  "typ": "JWT",
  "alg": "HS256"
}

{
  "iss": "joe",
  "exp": 1300819380,
  "http://example.com/is_root": true
}

The signature covers the encoded header and payload. It can establish integrity and authenticity only after the validator pins an allowed algorithm and resolves a trusted verification key for the expected issuer. Base64url provides representation, not confidentiality: anyone holding the token can read these claims. JWE is a separate encrypted representation when a protocol requires confidential claims.

Validation is a gate, not authorization. The API must verify the signature, issuer, audience, expiry and not-before times, and the token type or mutually exclusive validation rules for its use. It must then authorize the requested resource and action. A valid token saying is_root: true grants nothing unless the issuer is trusted for that claim and the API’s policy deliberately maps it to the operation.

Signing Algorithms

HS256 (HMAC-SHA256): Symmetric — the same secret key creates and verifies the MAC. Every validator can therefore mint tokens. Use it only when that shared trust and key-distribution boundary is deliberate.

RS256 (RSA-SHA256): Asymmetric — the issuer signs with a private key; validators verify with the public key. The public key can be published (JWKS endpoint). Use for multi-service architectures where multiple services validate tokens.

ES256 (ECDSA-SHA256): Asymmetric like RS256 and produces smaller keys and signatures. Choose it when the issuer, validators, libraries, and key-management path all support its exact JOSE representation.

ASP.NET Core Integration

// Program.cs
builder.Services.AddAuthentication(JwtBearerDefaults.AuthenticationScheme)
    .AddJwtBearer(options =>
    {
        options.Authority = "https://login.microsoftonline.com/{tenantId}/v2.0";
        options.Audience = "api://my-api-client-id";
        options.TokenValidationParameters = new TokenValidationParameters
        {
            ValidateIssuer = true,
            ValidateAudience = true,
            ValidateLifetime = true,
            ValidateIssuerSigningKey = true,
            ValidAlgorithms = ["RS256"],
            ClockSkew = TimeSpan.FromSeconds(30)
        };
    });

app.UseAuthentication();
app.UseAuthorization();

The middleware retrieves the OpenID Connect discovery document for the configured authority, reads its jwks_uri, and fetches and caches that issuer’s verification keys. Keep the discovery issuer, metadata address, and key set bound to the expected authority: a token’s kid may select a key only inside that trusted issuer-bound set, and token-controlled jku or x5u URLs must not introduce another key source.

Pitfalls

alg: none attack: Some early JWT libraries accepted tokens with alg: none in the header, bypassing signature verification. Fix: always explicitly specify allowed algorithms in TokenValidationParameters.ValidAlgorithms. Never accept none.

Algorithm-confusion attack (RS256 → HS256): the other famous JWT vuln. The server expects an RS256 (asymmetric) token and verifies with the issuer’s public key. An attacker forges a token with the header changed to HS256 (symmetric) and signs it using that public key as the HMAC secret — which is public. A library that picks the verification algorithm from the token’s own header will happily verify it. Fix (same root cause as alg:none): pin the expected algorithm server-side (ValidAlgorithms = ["RS256"]); never let the token’s header choose how it’s verified.

Long expiry times: local JWT validation does not consult revocation state, so a stolen 24-hour bearer token may remain useful for 24 hours. Use access-token lifetimes matched to the risk and a separately protected renewal mechanism. High-risk systems can consult revocation or session state, accepting that lookup and availability cost.

Browser storage without a threat model: JavaScript-readable storage exposes bearer tokens to successful XSS. HttpOnly cookies prevent direct script reads but are attached automatically, so CSRF defenses and cookie scope become part of the design. A backend-for-frontend can keep access tokens off the browser; choose the pattern against XSS, CSRF, device, and deployment constraints rather than treating one storage location as universally safe.

Missing audience validation: Without audience validation, a JWT issued for Service A can be used against Service B. Fix: always validate aud claim. Set ValidateAudience = true and specify ValidAudiences.

Tradeoffs

Decision axis	Locally validated JWT	Opaque reference token
Validation path	Signature and claim checks in each resource server	Introspection or session-store lookup
Revocation and claim changes	Stale until expiry unless extra state is consulted	Effective when the backing record changes
Leakage	Exposes readable claims and a usable bearer credential	Exposes a usable bearer reference without embedded claims
Availability	Depends on cached issuer keys and local policy	Depends on the token service or replicated store

Use a locally validated JWT when independent validation and bounded issuer outages matter, the claim set can remain valid for the token lifetime, and every resource server can enforce the same validation profile.

Use an opaque token when central session control, current authorization data, or immediate invalidation matters enough to pay for an online lookup.

Questions

What is a JWT token and why is it not encrypted by default?

• JWT is a compact token format: header.payload.signature (base64url encoded).
• Signed (JWS) means the signature proves integrity and authenticity under the selected trusted key; issuer validation binds that key and token to the expected issuer. The payload is still readable by anyone with the token.
• Encryption (JWE) is a separate standard that wraps the JWT in an encrypted envelope.
• Tradeoff: signed-only JWTs are simpler and faster to validate; JWE adds encryption overhead and key management complexity.

Why should JWTs have short expiry times?

• A locally validated bearer token remains usable until expiry unless the resource server also checks revocation or session state.
• Shorter lifetimes bound that replay window but increase renewal traffic and dependence on the issuer.
• Refresh tokens or another renewal credential need stronger storage, rotation, replay detection, and revocation than access tokens.
• Choose the lifetime from the operation’s impact and the system’s ability to detect and terminate compromise, not a universal minute value.

References

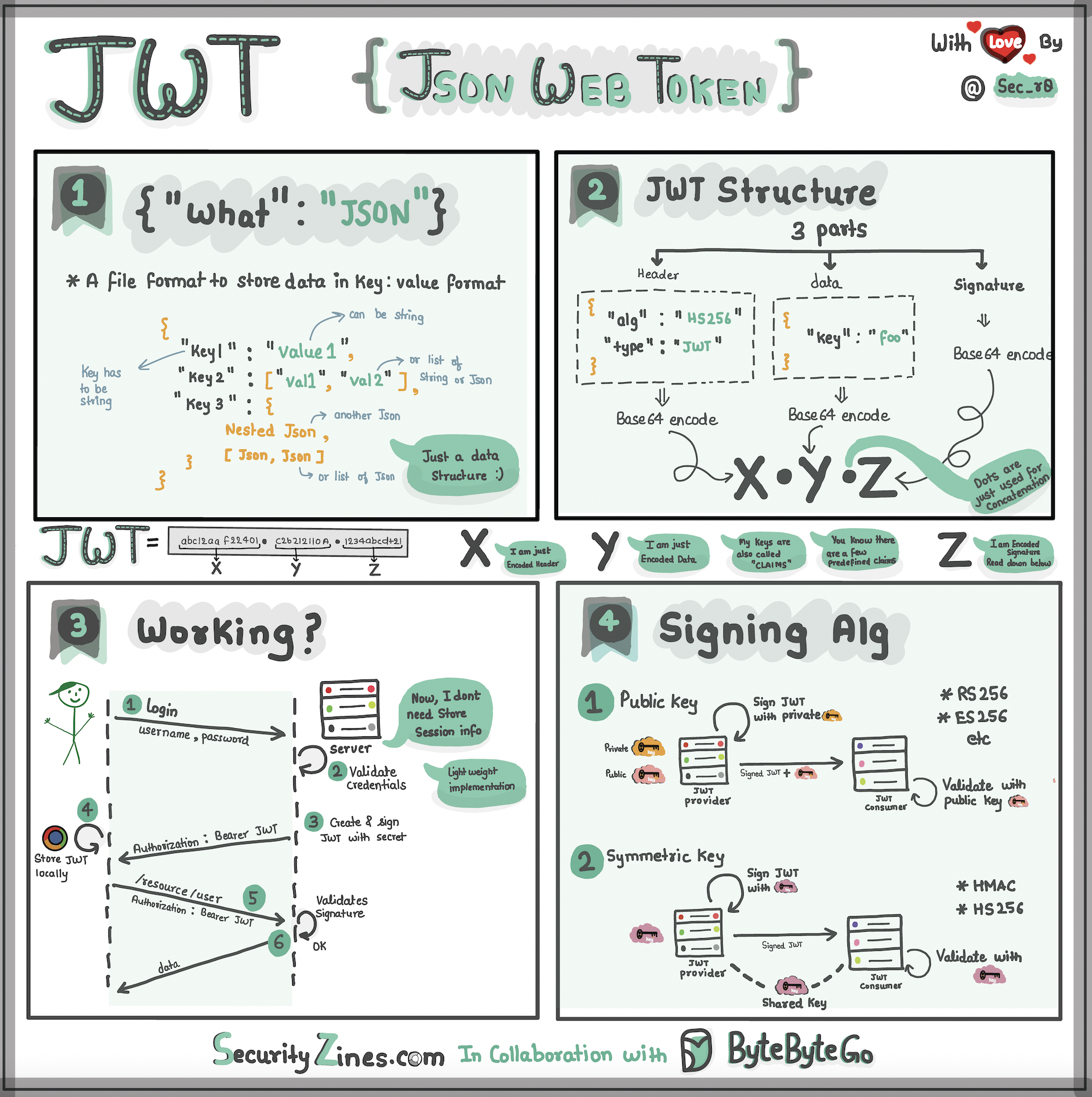

• ByteByteGo — Explaining JWT — the pinned recovered source and exact adopted visual for the structure explanation.
• RFC 8725 — JWT Best Current Practices — algorithm verification, issuer and audience validation, explicit typing, and cross-JWT confusion defenses.
• RFC 7519 — JWT — the JWT specification; defines structure, claims, and signing
• jwt.io — interactive JWT decoder and algorithm reference; useful for debugging tokens
• Microsoft — JWT Bearer in ASP.NET Core — official ASP.NET Core JWT authentication guide
• RFC 7517 — JSON Web Key (JWK) — the JWKS standard for publishing public keys
