Application architecture focuses on how a codebase is shaped: layers, modules, interaction patterns, and where responsibilities live. It affects testability, change speed, and how quickly new engineers can understand the system. Example: a layered design keeps domain logic independent from the database and web framework, which makes refactors safer.
Choosing an Application Architecture
These four notes answer different questions. Traditional Layered Architecture points dependencies down through the stack and can leave business logic coupled to data access; Onion-style layering inverts that boundary. Clean Architecture makes the inward Dependency Rule explicit for every inner policy boundary. Presentation Architecture Variants operates one level down, inside the presentation layer, deciding how the view, state, interaction logic, and navigation communicate. Plug-in Architecture (MicroKernel) is orthogonal: it answers “how do others extend this product?” rather than “how do I layer my domain?”
| Style | Core idea | Dependency direction / coupling | Testability | Best fit | Cost |
|---|---|---|---|---|---|
| Layered Architecture | Stack responsibilities into layers (Presentation → Application → Domain → Infrastructure) | Traditional layering points dependencies downward; an Onion variant inverts the data-access boundary so Infrastructure implements inner interfaces | Moderate — high once the data boundary is inverted; erodes if logic leaks into anemic services | Small-to-medium apps with real but bounded domain complexity | Low to start; over-engineering a 3-endpoint CRUD adds ceremony |
| Clean Architecture | The most prescriptive layered variant: the explicit Dependency Rule with policy at the center (Entities → Use Cases → Interface Adapters → Frameworks) | Strict inward rule — inner layers define contracts, outer layers implement them; enforced with architecture tests | High — Entities and Use Cases run in fast unit tests without booting the web/ORM stack | Long-lived systems with complex, valuable business policy and expected infrastructure churn | Higher upfront: ports, adapters, composition root, wiring overhead |
| Presentation Architecture Variants | Presentation-pattern family separating data, rendering, interaction logic, and navigation within the UI layer | Scoped to the UI: the view and presentation logic are decoupled from the model; not a whole-app dependency contract | High for controllers, view-models, presenters, update functions, and coordinators, but only for presentation concerns | MVC for server-rendered web, MVVM for bound stateful UI, and smaller variants when their seams match the interaction model | MVC is compact; binding, messages, coordinators, and routers add progressively different forms of ceremony |
| Plug-in Architecture (MicroKernel) | A small stable core defines extension points; plug-ins add features through those contracts without modifying the core | Plug-ins depend on the core’s extension-point contract (IPlugin); the core knows nothing about concrete plug-ins | Core and plug-ins test independently; isolation (AssemblyLoadContext) keeps their dependencies separate | Products needing runtime or third-party extensibility: IDEs, CMSs, per-customer modules | Complex loading and versioning, plus an in-process security surface for untrusted code |
Default to Layered Architecture and tighten toward Clean Architecture only when domain policy and longevity justify the extra indirection — for a simple CRUD service the stricter rules cost real time without protecting much. Reach for Plug-in Architecture (MicroKernel) on a different axis entirely: when the value is letting others extend the product without touching the core. Presentation Architecture Variants is not an alternative to these but a decision inside whichever structure you pick, governing how the presentation layer is organized.
Production web application request path
Trace POST /orders through boundaries rather than listing infrastructure as peers:
- DNS resolves the public name; an edge or load balancer terminates TLS and routes a healthy instance.
- The web adapter authenticates, validates transport input, and invokes one application use case.
- The use case enforces the order invariant and commits the order plus an outbox record in one database transaction.
- The HTTP path returns
201 Createdafter the authoritative commit. Email, analytics, and search indexing do not extend this latency budget. - An outbox publisher sends
OrderPlaced; independent workers update the search projection and send notifications idempotently. - Trace context joins the edge, application, database, outbox, broker, and workers. Metrics derive request latency, errors, queue age, and projection lag; alerts evaluate those service indicators.
Search is a read projection, not the source of truth. Logging and monitoring observe every boundary but do not sit inline as a synchronous dependency. CI/CD delivers artifacts and configuration; it is not part of a user request. This separation prevents a production architecture picture from implying that alerts, developers, or deployment tools participate in request processing.

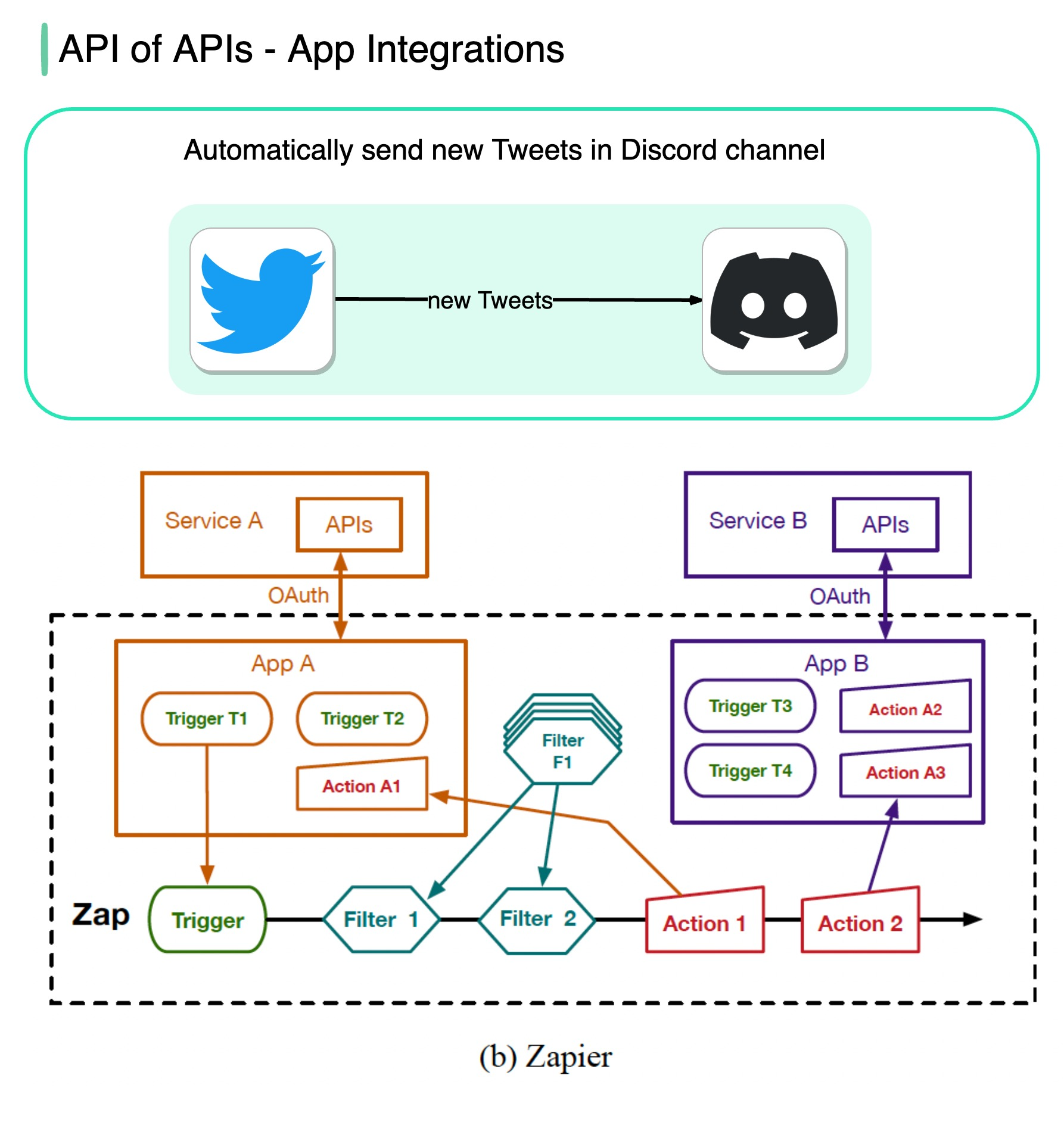

Trigger-action integration platforms
The branded example is dated, but the mechanism is stable: a connector observes a trigger, normalizes it, evaluates filters, and invokes one or more actions with stored credentials.
For new CRM deal -> create invoice -> notify account channel:
- A webhook or poller receives a provider event with a cursor or event ID.
- The integration platform stores the run and deduplicates retries.
- A filter checks deal stage and tenant policy.
- The invoice connector calls the provider with an idempotency key.
- The notification action runs only after the invoice result is recorded; failures expose retry and replay state.
This is not an API gateway. A gateway governs inbound traffic to APIs you own; an integration platform coordinates workflows across external applications. Connector breadth accelerates delivery but inherits each vendor’s schema churn, quotas, retry semantics, OAuth token lifecycle, and credential blast radius. Keep high-value business invariants in an owned service and use the integration platform for replaceable coordination.
