API Gateway

9 min read

Edit this pageReport / suggest

An API Gateway is a single entry point between external clients and a set of backend services. It centralizes cross-cutting concerns such as request routing, authentication and authorization enforcement, rate limiting, TLS termination, and traffic policies so individual services do not have to re-implement them. This matters because it gives you one place to enforce consistency and security while keeping clients simpler, especially when each client would otherwise need to call many services directly.

In .NET ecosystems, a common implementation is to run a reverse proxy gateway at the system edge and keep service-level business behavior inside domain services.

Core Responsibilities

flowchart LR
    Client[Client Apps] --> Gateway[API Gateway]
    Gateway --> SvcA[Service A]
    Gateway --> SvcB[Service B]
    Gateway --> SvcC[Service C]
  • Request routing: Map incoming paths, headers, hostnames, or methods to the right downstream service.
  • Authentication and authorization: Validate tokens at the edge and enforce coarse-grained access policy before forwarding.
  • Rate limiting and quotas: Protect services from abusive or accidental traffic spikes.
  • Request and response transformation: Normalize payload shape, hide internal endpoint changes, or project data for specific clients.
  • Load Balancing: Distribute requests across service instances using health-aware selection.
  • Circuit breaking and resiliency policies: Fail fast when a downstream is unhealthy and apply retries or fallback only where safe.
  • TLS termination: Offload certificate handling and HTTPS policy enforcement from every backend service.
  • Observability: Emit centralized logs, traces, metrics, and correlation IDs for end-to-end troubleshooting.

Routing, policy enforcement, composition, and failure boundary

Trace GET /mobile/orders/42 through the edge:

  1. Terminate TLS and enforce request-size and protocol limits.
  2. Authenticate the caller and apply a coarse-grained route policy.
  3. Rate-limit by tenant or credential before consuming downstream capacity.
  4. Route to Orders, or fan out to Orders, Payments, and Shipping for a mobile projection.
  5. Propagate trace and cancellation context; cap every downstream timeout inside the client deadline.
  6. Return a bounded response: complete, explicitly partial, or failed. Never silently omit a failed dependency.

Routing and policy are common gateway duties. Composition, response caching, transformation, retries, and circuit breaking are optional because each concentrates more state, latency, and failure at the gateway. A fan-out endpoint with three independent 99.9% dependencies has lower end-to-end availability than any one dependency unless it can degrade safely.

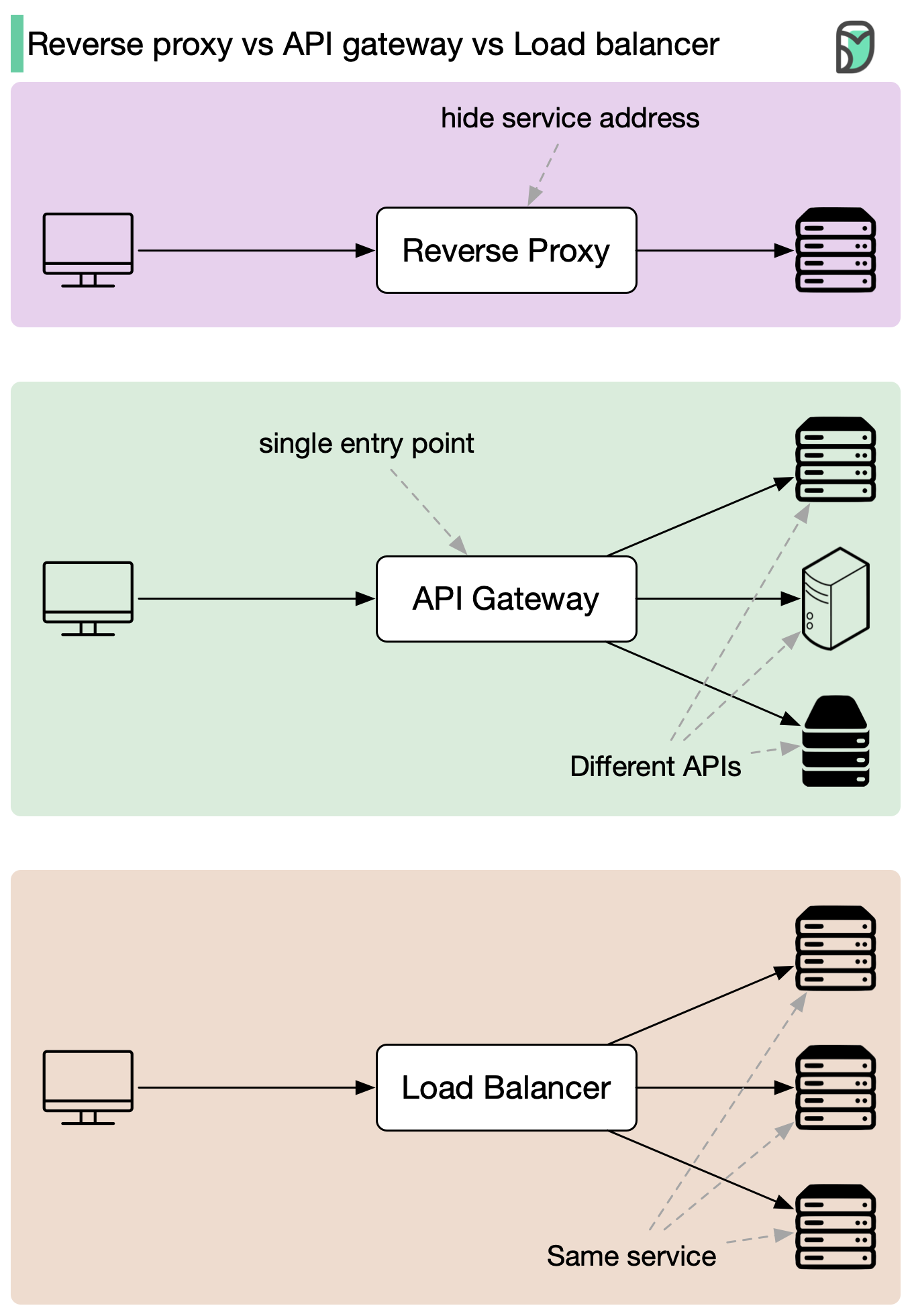

Reverse proxy, gateway, and load balancer capability overlap

The image shows archetypal roles, not mutually exclusive products. NGINX, Envoy, YARP, and cloud gateways can combine several columns.

CapabilityReverse proxyAPI gatewayLoad balancer
Hide backend addresses and terminate TLSCommonCommonCommon for proxy load balancers
Route by host, path, or headerCommon at L7CoreL7 only
Auth, quotas, API keys, contract lifecyclePossible with modulesCoreUsually outside scope
Compose multiple APIsPossible in custom codeOptionalOutside scope
Health-aware distribution across equivalent instancesPossibleOften delegated or built inCore

Choose the failure boundary deliberately. A global edge proxy affects all routes; a domain gateway affects one bounded context; a per-service load balancer affects one replica pool. Product names do not define the blast radius — topology and ownership do.

Patterns

Gateway Routing

Use the gateway as the policy and routing edge. Clients call one host, and route rules dispatch traffic to internal services.

When it works best:

  • Many services are private on internal networks.
  • You need consistent auth and throttling policy.
  • You want controlled API evolution at the boundary.

Gateway Aggregation

The gateway composes a single response from multiple service calls to reduce client round trips.

Concrete example:

  • Mobile app needs order summary page.
  • Gateway calls Orders, Payments, and Shipping services.
  • Gateway returns one payload tuned for the mobile screen.

Use carefully: aggregation is orchestration logic, not domain logic. Keep it thin and response-oriented.

Gateway Offloading

The gateway handles edge concerns such as TLS, compression, CORS, header normalization, and request size limits.

Benefit:

  • Service teams focus on domain behavior.
  • Security and policy changes roll out in one place.

BFF (Backend for Frontend)

Separate gateways or route sets per client type only when payload, authentication, latency, release cadence, or ownership needs have materially diverged. A mobile checkout BFF can fetch order, inventory, loyalty, and payment-method data in parallel and return one payload sized for a constrained network.

Keep domain decisions out of the BFF. CanRefundOrder belongs to Orders or Payments, not to a client adapter; otherwise mobile, web, and partner clients acquire different business rules.

Netflix API evolution: aggregation to federation

The visual compresses distinct systems into an evolution story. Federation redistributes schema and resolver ownership toward domains while a shared registry and graph gateway retain composition and execution responsibilities. Each domain owns its schema contribution and resolver behavior; composition checks compatibility before a change reaches the gateway.

Federation does not remove network cost. A query crossing five subgraphs can still create fan-out latency or an N+1 pattern, so the boundary needs query limits, tracing, batching, and ownership metadata. A BFF and federation can coexist when they solve different ownership problems: the BFF follows a client, while federation follows domains. Do not stack them unless each layer has a distinct owner and measured value.

.NET gateway implementation

YARP provides configurable routes, clusters, transforms, destination health, and ASP.NET Core extension points:

var builder = WebApplication.CreateBuilder(args);

builder.Services
    .AddReverseProxy()
    .LoadFromConfig(builder.Configuration.GetSection("ReverseProxy"));

var app = builder.Build();
app.MapReverseProxy();
app.Run();
{
  "ReverseProxy": {
    "Routes": {
      "orders": {
        "ClusterId": "orders-cluster",
        "Match": { "Path": "/api/orders/{**catch-all}" },
        "Transforms": [{ "PathRemovePrefix": "/api" }]
      }
    },
    "Clusters": {
      "orders-cluster": {
        "Destinations": {
          "orders-a": { "Address": "https://orders.internal/" }
        }
      }
    }
  }
}

Authenticate before proxying and authorize by route or endpoint metadata. Forward trace context without logging bearer tokens or bodies by default. Apply client-facing rate limits at the edge, use destination health only when it distinguishes one backend from the fleet, and retry only replayable requests. An uncertain POST needs an end-to-end idempotency contract.

The gateway pattern remains independent of YARP. If gateway code starts deciding payment state, order eligibility, or inventory invariants, move that logic to the owning service.

Gateway vs Service Mesh

API Gateway and Service Mesh solve different traffic planes and are often used together.

  • Gateway (north-south): Handles client-to-system traffic, public API exposure, edge auth, and external policy enforcement.
  • Service mesh (east-west): Handles service-to-service traffic inside the platform, including mTLS, retries, traffic shifting, and per-service telemetry.

Rule of thumb:

  • Put internet-facing boundary policy in the gateway.
  • Put internal service communication policy in the mesh.

Tradeoffs

  • Direct client to services vs gateway: Direct calls reduce one network hop but increase client complexity and duplicate policy enforcement.
  • Single gateway vs BFF gateways: Single gateway is simpler to operate; BFF improves client optimization and team autonomy at the cost of more moving parts.
  • Centralized transformation vs service-owned contracts: Gateway transformations can shield clients from churn, but too much translation can hide unhealthy service boundaries.

Pitfalls

  1. Gateway becomes a monolith bottleneck

    • What goes wrong: every change flows through one oversized gateway, and outages impact all consumers.
    • Why it happens: uncontrolled feature growth and weak horizontal scaling strategy.
    • How to prevent/detect: keep gateway stateless, scale out aggressively, split by bounded context or BFF when ownership and traffic diverge.

  2. Business logic creeps into the gateway

    • What goes wrong: domain rules are duplicated at the edge, causing inconsistent behavior and hard-to-test flows.
    • Why it happens: aggregation code gradually turns into orchestration and then decision logic.
    • How to prevent/detect: enforce a boundary rule that gateway owns transport and policy only; domain invariants stay in services.

  3. Extra latency from the additional hop

    • What goes wrong: p95 and p99 latency increase, especially under fan-out aggregation.
    • Why it happens: more network hops, serialization work, and downstream dependency chains.
    • How to prevent/detect: measure end-to-end traces, cap fan-out depth, use parallel downstream calls, and cache only where freshness allows.

  4. Configuration sprawl with many routes

    • What goes wrong: route conflicts, accidental exposure, and hard-to-review config changes.
    • Why it happens: rapid service growth without governance for route naming and ownership.
    • How to prevent/detect: define route conventions, enforce config validation in CI, and assign clear ownership per route group.
