Nginx

NGINX is an event-driven HTTP web server and reverse proxy. A master process handles global config and worker lifecycle; workers keep request state on sockets.

Use NGINX for commodity edge behavior: path/host routing, TLS termination, buffering, caching, and upstream balancing. Prefer managed ingress or platform edge services when operations ownership already exists and product requirements are not edge-specific.

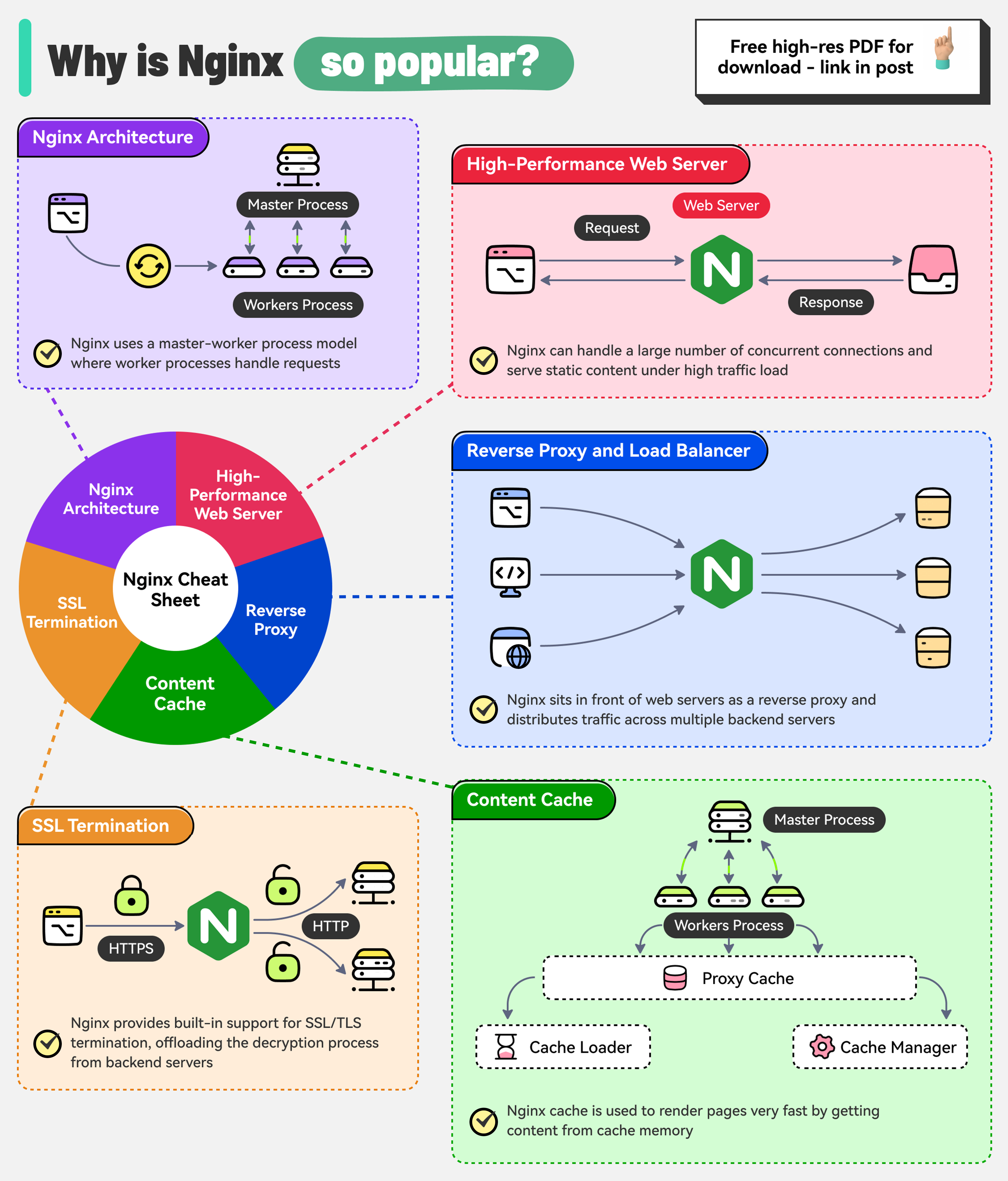

The diagram’s “cache memory” label is shorthand: response bodies are file-backed under proxy_cache_path, while the shared-memory zone holds keys and metadata.

Reverse-Proxy Boundary

When a public request enters NGINX:

1. The proxy accepts or reuses a connection.
2. It applies host/path/header policy.
3. It opens upstream connection(s).
4. It forwards, buffers, and returns a response.

The origin sees proxy-origin traffic as client traffic. If app identity needs to include user identity, only trust proxy-authenticated forwarding headers from known and controlled edge nodes.

upstream orders_api {
    least_conn;
    server 10.0.1.10:8080;
    server 10.0.1.11:8080;
}

server {
    listen 443 ssl;
    server_name api.example.com;

    ssl_certificate /etc/nginx/tls/fullchain.pem;
    ssl_certificate_key /etc/nginx/tls/private.key;

    location /assets/ {
        root /srv/site;
    }

    location /orders/ {
        proxy_pass http://orders_api;
        proxy_set_header Host $host;
        proxy_set_header X-Forwarded-Proto $scheme;
        proxy_connect_timeout 2s;
        proxy_read_timeout 15s;
    }
}

If upstream uses TLS, verify certificate policy separately at that hop. A plain proxy-to-origin channel can reduce latency but lowers transport isolation.

Forward Proxy vs Reverse Proxy

Both are intermediaries but represent different trust models:

• Forward proxy: represents client egress and policy, may tunnel with CONNECT.
• Reverse proxy: represents the origin side and handles inbound public entry.

For forward proxy scenarios (egress controls, filtering, TLS inspection), enforce strict policy for CONNECT, authentication, and trusted CA trust-path assumptions.

Observability and Failure Codes

• 502: upstream response was invalid for the proxy.
• 504: request hit gateway timeout before upstream completion.
• 503: capacity or protection boundary reached.

Design retries and failover upstreams based on this boundary, not on the application alone.

Why NGINX for This Layer

NGINX remains strong for stable declarative edge behavior and static/off-path optimization. For service-specific logic, policy, auth, and custom routing composition inside an app stack, YARP inside ASP.NET Core can reduce operational fragmentation.

References

• Why is NGINX so Popular? (ByteByteGo) — process and proxy feature baseline.
• NGINX Beginner’s Guide — configuration and proxy basics.
• Controlling NGINX — lifecycle and graceful reload behavior.
• NGINX HTTP proxy module — directives for forwarding and buffering.
• NGINX HTTP upstream module — load balancing and upstream options.
• NGINX TLS module — TLS protocol and certificate behavior.
• YARP overview — .NET-native proxy alternative.
